DIAGRIT U

The toothed diamond coated band saw blade

Product level 2

Band width 10 x 0.5 – 100 x 1.1mm

24x24-Workpiece-Size-icon

Workpiece dimension large

24x24-Diamond-icon

Intermittent diamond coating

Inquiry Now

Description

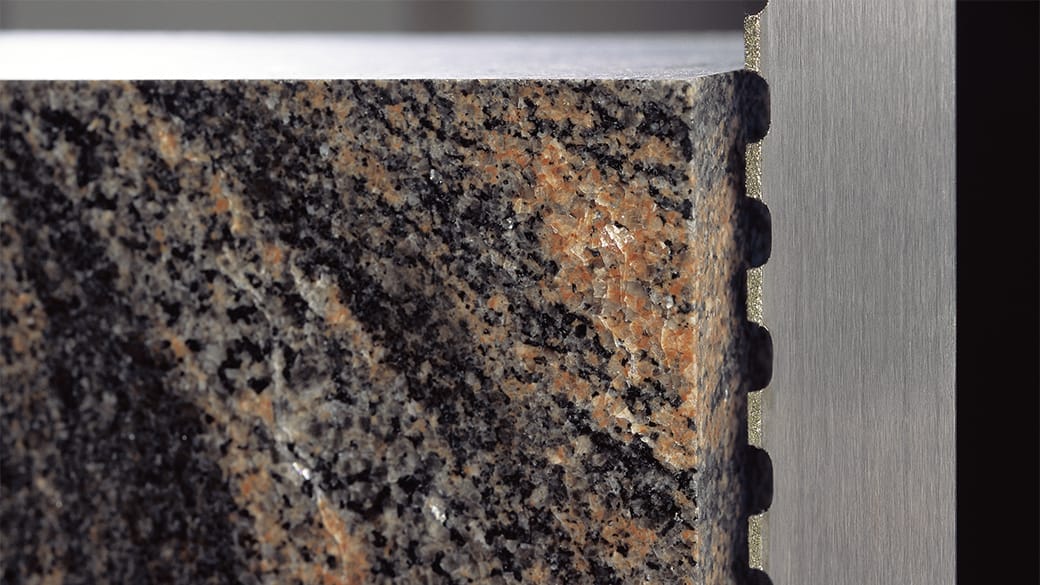

The toothed diamond coated band saw blade

Wikus Bandsaw Blades Online in India

Application

  • Glass, graphite, high-fired graphite, ceramic, silicon
  • Concrete materials, carbon fibre reinforced plastic, sintered materials, virgin stone
  • Large workpiece dimensions

Advantages

  • Large gullet for material chipping
  • Individual segment geometry (special tooth)
  • Short cutting time due to excellent cutting rate

Features

  • Protruding segments with diamond coating in different distances
  • Backing material made of alloyed tempering steel

Technical Data

Dimensions Tooth pitch in ZpZ
Width x thickness variable constant
mm Inch 30-30 20-20 12-12 8 6
41 x 0.50 1-5/8 x 0.020 X
100 x 1.10 4 x 0.042 X X
100 x 0.90 4 x 0.035 X
80 x 1.10 3-1/8 x 0.042 X
67 x 1.60 2-5/8 x 0.063 X
54 x 1.10 2-1/8 x 0.042 X
50 x 0.90 2 x 0.035 X
41 x 1.30 1-5/8 x 0.050 X
41 x 0.80 1-5/8 x 0.032 X
10 x 0.50 3/8 x 0.020 X
34 x 1.10 1-3/8 x 0.042 X
27 x 0.90 1-1/16 x 0.035 X
27 x 0.70 1-1/16 x 0.028 X X
27 x 0.50 1-1/16 x 0.020 X
20 x 0.80 3/4 x 0.032 X
16 x 0.50 5/8 x 0.020 X
13 x 0.65 1/2 x 0.025 X
13 x 0.50 1/2 x 0.020 X

Grain sizes: D64, D91, D126, D151, D181, D252, D301, D356, D426, D501, D601, D711
Alternative band dimensions upon request

Materials Overview

  • Silicon, glass, natural stone
