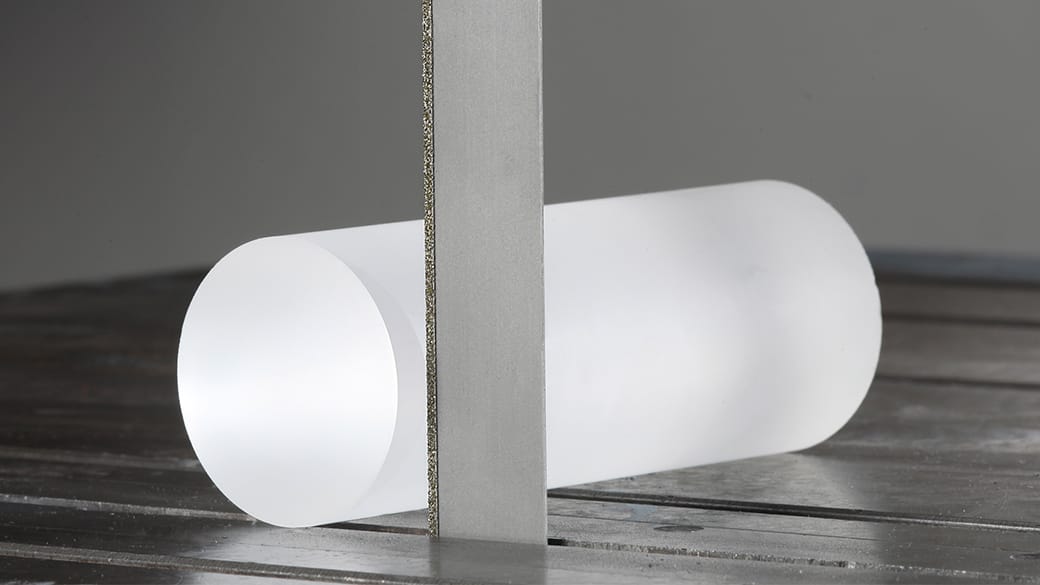

DIAGRIT K VA
The continuously diamond coated band saw blade with stainless backing material
Product level 2
Band width 13 x 0.5 – 100 x 1.1mm
Workpiece dimension small
Continuous diamond coating
Description
The continuously diamond coated band saw blade with stainless backing material
Application
- Glass, graphite, high-fired graphite, ceramic, silicon
- Concrete materials, carbon fibre reinforced plastic, sintered materials, virgin stone
- Small workpiece dimensions
Advantages
- Oil-free cooling lubricant usable
- No corrosion of backing material during longer downtime
- No chipping on the contour edges
- Low finishing thanks to very good cutting surfaces
Features
- Continuous diamond coating on the band edge
- Backing material made of stainless special steel
Technical Data
| Dimensions | |
|---|---|
| Width x thickness | |
| mm | Inch |
| 13 x 0.50 | 1/2 x 0.020 |
| 20 x 0.50 | 3/4 x 0.020 |
| 20 x 0.80 | 3/4 x 0.032 |
| 27 x 0.50 | 1-1/16 x 0.020 |
| 41 x 0.50 | 1-5/8 x 0.020 |
| 41 x 0.80 | 1-5/3 x 0.032 |
| 54 x 0.50 | 2-1/8 x 0.020 |
| 60 x 0.50 | 2-1/3 x 0.020 |
| 80 x 1.10 | 3-1/8 x 0.042 |
| 100 x 1.10 | 4 x 0.042 |
Grain sizes: D64, D91, D126, D151, D181, D252, D301, D356, D426, D501, D601, D711
Alternative band dimensions upon request
Materials Overview
- Silicon, glass, natural stone
